Chisel Learning (VGA Output)



Version: 2024/10/07

Table of Contents:

  1. Prerequisites
  2. Display Output Timing
  3. Directory Structure
  4. VGA Output Logic
  5. Testing
  6. Creating Top (vga_top.v)
  7. Creating Conversion Script (arty_a7.tcl)
  8. Generating RGB Data

1. Prerequisites

Prerequisites for this document

Caravel

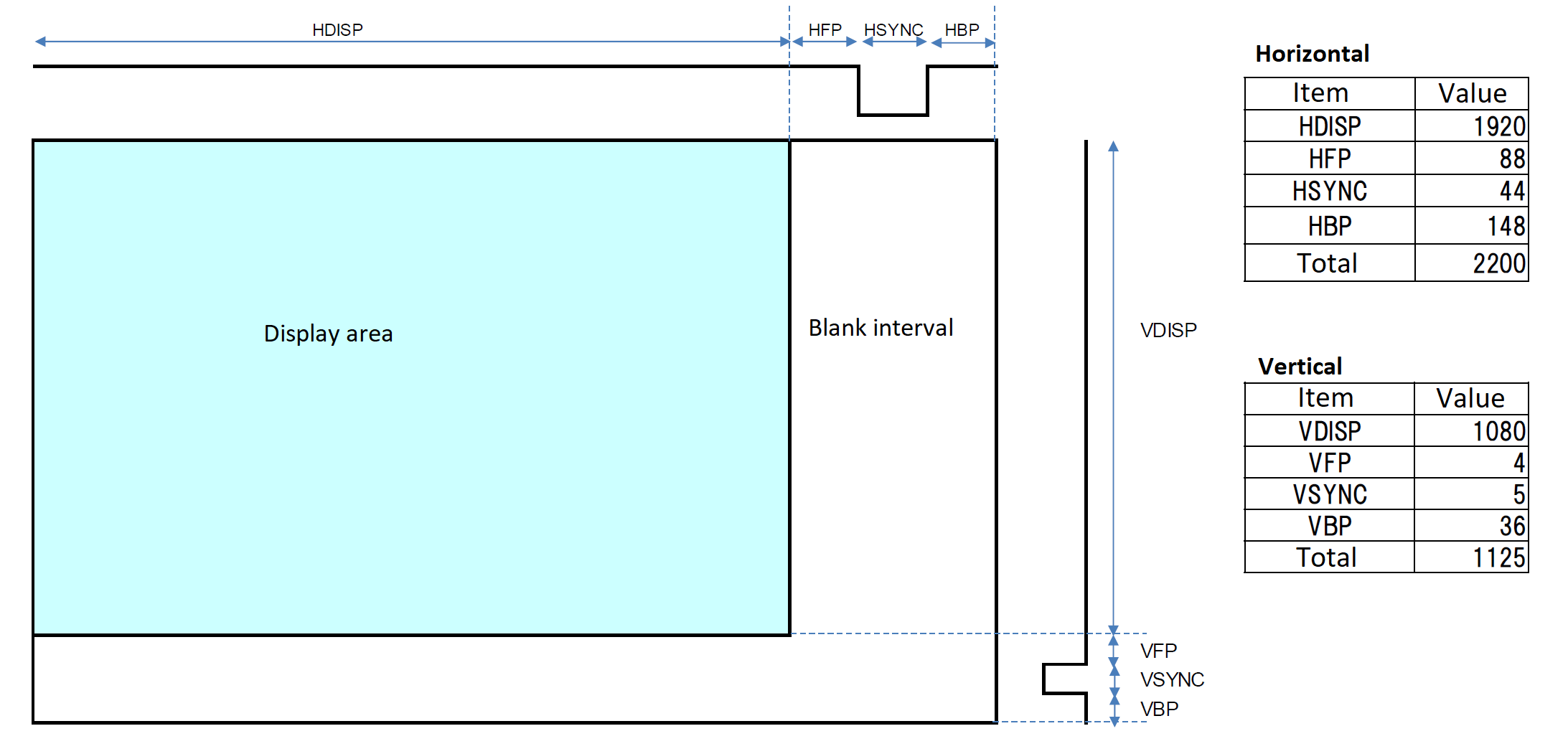

2. Display Output Timing

Display Control
  • • Controlled by two signals: HSYNC and VSYNC
  • • Timing for 1920 x 1080 (1080P)

Dot clock frequency: 2,200 × 1,125 × 60 [Hz] = 148.5 [MHz]

Caravel

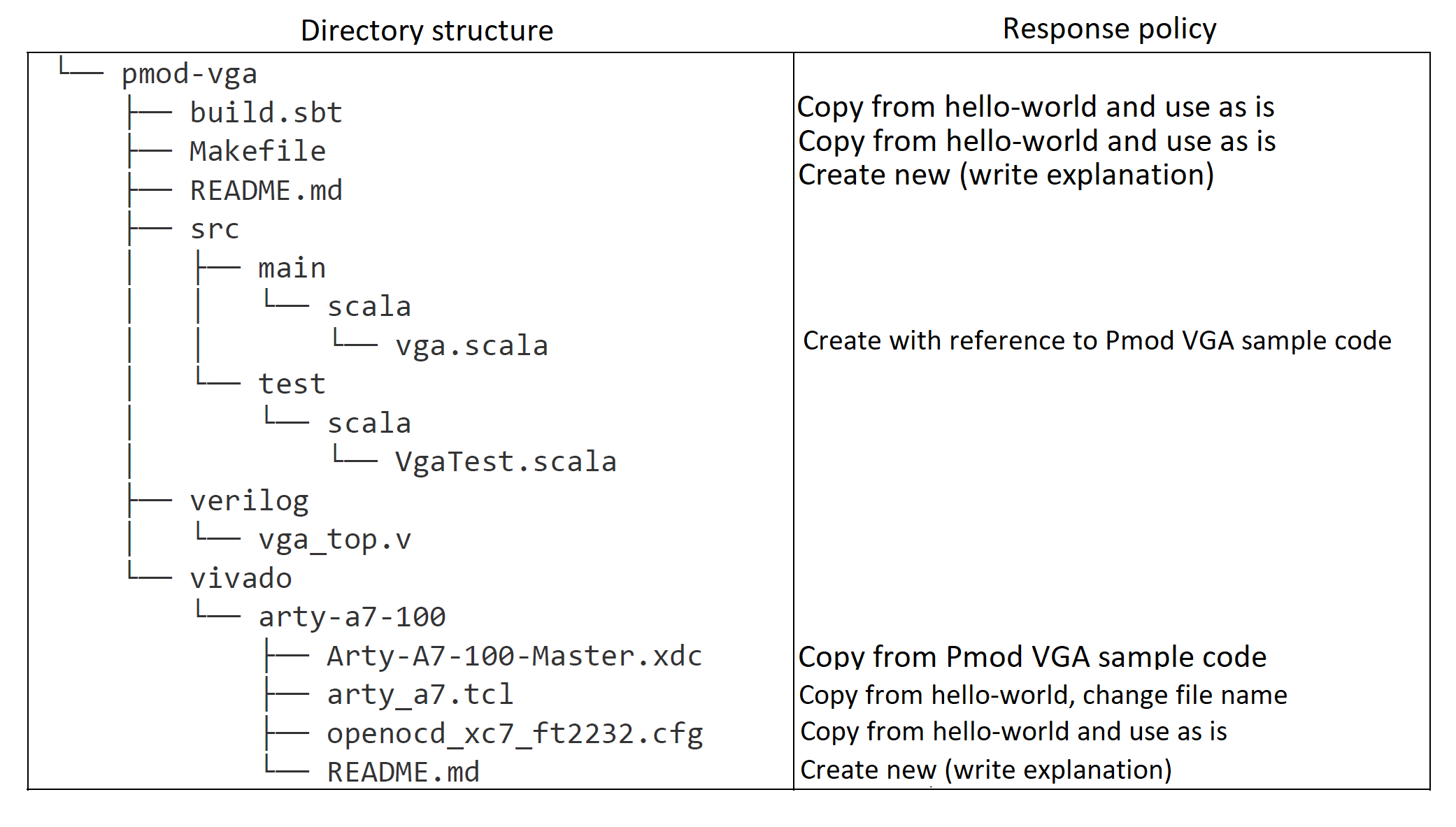

3. Directory Structure

Refer to Chisel examples for structure

Caravel

4. VGA Output Logic

Interface
  • • Clock and reset are not defined
  • • Color is 4 bits (as per Pmod VGA specification)
Signals Count Content
hSync 1 Horizontal sync signal
vSync 1 Vertical sync signal
colorR 4 Red color
colorG 4 Green color
colorB 4 Blue color
class PmodVga extends Module {
	val io = IO(new Bundle {
		val hSync = Output(UInt(1.W))
		val vSync = Output(UInt(1.W))
		val colorR = Output(UInt(4.W))
		val colorG = Output(UInt(4.W))
		val colorB = Output(UInt(4.W))
	})

HSYNC Generation
  • • 12-bit counter in the horizontal direction (0 to HDISP + HFP + HSYNC + HBP - 1)
  • • Timing for HSYNC assertion
    • Start: HDISP + HFP (Counter value HDISP + HFP - 1)
    • End: HDISP + HFP + HSYNC (Counter value HDISP + HFP + HSYNC - 1)
  • • Set small values for testing (to be changed after practical confirmation)
/* Horizontal */
val hDispWidth = 10.U(12.W)     /* Set small values for testing */
val hFrontPorch = 3.U(12.W)
val hSyncWidth = 3.U(12.W)
val hTotalWidth = 20.U(12.W)

val hCountReg = RegInit(0.U(12.W))
hCountReg := Mux(hCountReg < (hTotalWidth - 1.U), hCountReg + 1.U, 0.U)

val hSyncReg = RegInit(1.U(1.W))
hSyncReg := Mux(hCountReg >= (hDispWidth + hFrontPorch - 1.U) &&
			    hCountReg < (hDispWidth + hFrontPorch + hSyncWidth - 1.U),
			    0.U, 1.U)

io.hSync := hSyncReg

VSYNC Generation
  • • 12-bit counter in the vertical direction (0 to VDISP + VFP + VSYNC + VBP - 1)
    • • Counter is updated simultaneously with HSYNC assertion (once horizontally)
  • • Timing for VSYNC assertion
    • Start: VDISP + VFP (Counter value VDISP + VFP - 1)
    • End: VDISP + VFP + VSYNC (Counter value VDISP + VFP + VSYNC - 1)
  • • Set small values for testing (to be changed after practical confirmation)
/* Vertical parameters */
val vDispHeight = 6.U(12.W)     /* Set small values for testing */
val vFrontPorch = 1.U(12.W)
val vSyncWidth = 2.U(12.W)
val vTotalHeight = 10.U(12.W)

val vCountReg = RegInit(0.U(12.W))
val vSyncReg = RegInit(1.U(1.W))

when (hCountReg === (hDispWidth + hFrontPorch - 1.U)) {     /* Counter update timing is the same as when HSYNC output starts */
	vCountReg := Mux(vCountReg < (vTotalHeight - 1.U), vCountReg + 1.U, 0.U)
	vSyncReg := Mux(vCountReg >= (vDispHeight + vFrontPorch - 1.U) &&
	vCountReg < (vDispHeight + vFrontPorch + vSyncWidth - 1.U),
	0.U, 1.U)
}
io.vSync := vSyncReg

RGB Data
  • • Temporarily set fixed values (0 output)
/* Other signals */
io.colorR := 0.U
io.colorG := 0.U
io.colorB := 0.U

5. Testing

Testing Policy
  • • Confirmation Content
    • • HSYNC output timing adheres to design
    • • VSYNC output timing adheres to design
  • • Acquire and display data for one frame
Confirmation Image

Caravel


Test Code (first half: until testing is executed)
import chiseltest._
import org.scalatest.flatspec.AnyFlatSpec
class PmodVgaTest extends AnyFlatSpec with ChiselScalatestTester {
	behavior of "PmodVga"
	it should "pass" in {
		test(new PmodVga) { c =>
			c.clock.setTimeout(0)

			val hTotal = 20
			val vTotal = 10
			val frameH = Array.ofDim[BigInt](vTotal, hTotal)
			val frameV = Array.ofDim[BigInt](vTotal, hTotal)
			val lineV = Array.ofDim[BigInt](vTotal)

			var hSyncPrev = BigInt(-1)

			/* Test */
			for (y <- 0 until vTotal) {
				for (x <- 0 until hTotal) {
					c.clock.step(1)
					val hSyncNow = c.io.hSync.peek().litValue
					val vSyncNow = c.io.vSync.peek().litValue
					frameH(y)(x) = hSyncNow
					frameV(y)(x) = vSyncNow
					if ((hSyncPrev === 1) && (hSyncNow === 0)) {
						lineV(y) = vSyncNow
					}
					hSyncPrev = hSyncNow
				}
			}
  • Yellow: Set small values for testing, Match with implementation. It should be possible to make it smarter using traits
  • Green: For HSYNC falling edge detection
  • Orange: Get HSYNC and VSYNC Perform every clock. Perform every clock
  • Dark green: Get VSYNC value at HSYNC falling edge

Test Code (second half: output results)

			/* Print */
			println("HSYNC frame")
			for (y <- 0 until vTotal) {
				print(lineV(y))
				print(": ")
				for (x <- 0 until hTotal) {
					print(frameH(y)(x))
				}
				print("¥n")
			}
			/* Print vSync frame */
			println("VSYNC frame")
			for (y <- 0 until vTotal) {
				for (x <- 0 until hTotal) {
					print(frameV(y)(x))
				}
				print("¥n")
			}
			println("¥nEnd of test")
		}
	}
}
  • Yellow: HSYNC output every clock. VSYNC output only at HSYNC falling edge
  • Green: VSYNC output every clock

Test Execution Results
$ sbt test
[info] welcome to sbt 1.10.2 (Ubuntu Java 17.0.12)
[info] loading project definition from /home/masatakak/work/chisel/pmod-vga/project
[info] loading settings for project pmod-vga from build.sbt ...
[info] set current project to pmod-vga (in build file:/home/masatakak/work/chisel/pmod-vga/)
[info] compiling 1 Scala source to /home/masatakak/work/chisel/pmod-vga/target/scala-2.12/classes ...
[info] compiling 1 Scala source to /home/masatakak/work/chisel/pmod-vga/target/scala-2.12/test-classes ...
start the Pmod VGA
HSYNC frame
1: 11111111111100011111
1: 11111111111100011111
1: 11111111111100011111
1: 11111111111100011111
1: 11111111111100011111
1: 11111111111100011111
0: 11111111111100011111
0: 11111111111100011111
1: 11111111111100011111
1: 11111111111100011111
VSYNC frame
11111111111111111111
11111111111111111111
11111111111111111111
11111111111111111111
11111111111111111111
11111111111111111111
11111111111100000000
00000000000000000000
00000000000011111111
11111111111111111111
End of test
  • Yellow: As per HSYNC design
  • Green: As per VSYNC design

6. Creating Top (vga_top.v)

Created with reference to hello_top.v
  • • Align with the XDC file
/*
 * vga_top.v
 */
module vga_top(input CLK_I,
			output [3:0] VGA_R, output [3:0] VGA_G, output [3:0] VGA_B,
			output VGA_HS_O, output VGA_VS_O);
	wire res;
	wire clk_vga; /* VGA clock */
	wire locked; /* PLL lock status (not used) */

	assign res = 1'h0;

	clk_wiz_0 pll(.clk_out1(clk_vga), .reset(res),
				.clk_in1(CLK_I), .locked(locked));

	PmodVga vgactl(.clock(clk_vga), .reset(res),
				   .io_hSync(VGA_HS_O), .io_vSync(VGA_VS_O),
				   .io_colorR(VGA_R), .io_colorG(VGA_G), .io_colorB(VGA_B));
endmodule

7. Creating Conversion Script (arty_a7.tcl)

Revised hello_world's script (red text portion)
# Add Sources

read_verilog {../../PmodVga.v}
read_verilog {../../verilog/vga_top.v}
# 1. Change Verilog file name

# Add IPs

create_ip -name clk_wiz -vendor xilinx.com -library ip -module_name clk_wiz_0
set_property -dict [list CONFIG.PRIM_IN_FREQ {100.00} ¥
		CONFIG.CLKOUT1_REQUESTED_OUT_FREQ {148.500}] [get_ips clk_wiz_0]
generate_target {all} [get_ips clk_wiz_0]+
# 2. Change clock frequency

read_verilog {./arty_a7.gen/sources_1/ip/clk_wiz_0/clk_wiz_0.v}
read_verilog {./arty_a7.gen/sources_1/ip/clk_wiz_0/clk_wiz_0_clk_wiz.v}

# Add constraints

read_xdc Arty-A7-100-Master.xdc
set_property PROCESSING_ORDER EARLY [get_files Arty-A7-100-Master.xdc]

# Add pre-synthesis commands

# Synthesis
synth_design -directive default -top vga_top -part xc7a100tcsg324-1
# 3. Change top-level module name

8. Generating RGB Data

Display vertical stripes
  • • Display vertically in the order of RGB, White
  • • Select color using bits 5:4 of the horizontal counter, output bits 3:0 as is
/* RGB signals */
	val active = Mux((hCountReg < hDispWidth) && (vCountReg < vDispHeight), 1.U, 0.U)
	val colSelect = hCountReg(5, 4)
	val colValue = hCountReg(3, 0)

	when (active === 1.U) {
		io.colorR := Mux(colSelect === 0.U || colSelect === 3.U, colValue, 0.U)
		io.colorG := Mux(colSelect === 1.U || colSelect === 3.U, colValue, 0.U)
		io.colorB := Mux(colSelect === 2.U || colSelect === 3.U, colValue, 0.U)
	} .otherwise {
		io.colorR := 0.U
		io.colorG := 0.U
		io.colorB := 0.U
	}

Caravel


Porting Digilent's VHDL demo (BOX part is not implemented)
/* RGB signals */
val active = Mux((hCountReg < hDispWidth) && (vCountReg < vDispHeight), 1.U, 0.U)

when (active === 1.U) {
	io.colorR := Mux(hCountReg < 512.U && vCountReg < 256.U && hCountReg(8) === 1.U, hCountReg(5, 2),
				 Mux(hCountReg < 512.U && vCountReg < 256.U && pixelInBox === 0.U, 15.U,
				 Mux((hCountReg >= 512.U && vCountReg(8) === 1.U && hCountReg(3) === 1.U) ||
					 (hCountReg >= 512.U && vCountReg(8) === 0.U && vCountReg(3) === 1.U), 15.U, 0.U)))
	io.colorB := Mux(hCountReg < 512.U && vCountReg < 256.U && hCountReg(6) === 1.U, hCountReg(5, 2),
				 Mux(hCountReg < 512.U && vCountReg < 256.U && pixelInBox === 0.U, 15.U,
				 Mux((hCountReg >= 512.U && vCountReg(8) === 1.U && hCountReg(3) === 1.U) ||
					 (hCountReg >= 512.U && vCountReg(8) === 0.U && vCountReg(3) === 1.U), 15.U, 0.U)))
	io.colorG := Mux(hCountReg < 512.U && vCountReg < 256.U && hCountReg(7) === 1.U, hCountReg(5, 2),
				 Mux(hCountReg < 512.U && vCountReg < 256.U && pixelInBox === 0.U, 15.U,
				 Mux((hCountReg >= 512.U && vCountReg(8) === 1.U && hCountReg(3) === 1.U) ||
					 (hCountReg >= 512.U && vCountReg(8) === 0.U && vCountReg(3) === 1.U), 15.U, 0.U)))
} .otherwise {
	io.colorR := 0.U
	io.colorG := 0.U
	io.colorB := 0.U
}

Caravel


Add BOX
/* Box */
	val boxWidth = 8.U
	val boxXMax = 512.U - boxWidth
	val boxYMax = vDispHeight - boxWidth
	val boxXMin = 0.U
	val boxYMin = 256.U
	val boxXInit = 0.U(12.W)
	val boxYInit = 400.U(12.W)
	val boxClockDiv = 1000000.U

	val boxCountReg = RegInit(0.U(25.W))
	boxCountReg := Mux(boxCountReg === boxClockDiv - 1.U, 0.U, boxCountReg + 1.U)
	val updateBox = Mux(boxCountReg === boxClockDiv - 1.U, 1.U, 0.U)

	val boxXReg = RegInit(0.U(12.W))
	val boxYReg = RegInit(0.U(12.W))
	val boxXDirReg = RegInit(1.U(1.W))
	val boxYDirReg = RegInit(1.U(1.W))

	when (updateBox === 1.U) {
		boxXReg := Mux(boxXDirReg === 1.U, boxXReg + 1.U, boxXReg - 1.U)
		boxYReg := Mux(boxYDirReg === 1.U, boxYReg + 1.U, boxYReg - 1.U)

		boxXDirReg := Mux(boxXDirReg === 1.U && boxXReg === (boxXMax - 1.U), 0.U,
					  Mux(boxXDirReg === 0.U && boxXReg === (boxXMin + 1.U), 1.U, boxXDirReg))
		boxYDirReg := Mux(boxYDirReg === 1.U && boxYReg === (boxYMax - 1.U), 0.U,
					  Mux(boxYDirReg === 0.U && boxYReg === (boxYMin + 1.U), 1.U, boxYDirReg))
	}
	val pixelInBox = Mux(hCountReg >= boxXReg && hCountReg < (boxXReg + boxWidth) &&
						 vCountReg >= boxYReg && vCountReg < (boxYReg + boxWidth), 1.U, 0.U)

Modified to enable the red BOX to move
when (active === 1.U) {
	io.colorR := Mux(pixelInBox === 1.U, 15.U,
				 Mux(hCountReg < 512.U && vCountReg < 256.U && hCountReg(8) === 1.U, hCountReg(5, 2),
				 Mux(hCountReg < 512.U && vCountReg < 256.U && pixelInBox === 0.U, 15.U,
				 Mux((hCountReg >= 512.U && vCountReg(8) === 1.U && hCountReg(3) === 1.U) ||
					 (hCountReg >= 512.U && vCountReg(8) === 0.U && vCountReg(3) === 1.U), 15.U, 0.U))))

Caravel
